The bar chart below demonstrates the rendering speed difference between 68k and PPC systems.
In the example "Test 1 - Global effect", a primitive disc object is placed in a scene with one light. The PPC global effect Haze is used to provide a glow/haze around the disc.

Sytem configuration:
CyberStormPPC 50Mhz 68060/233Mhz 604e PPC
128Mb RAM
Time to render frame is measured in seconds.

Software:
Imagine V5.0 - The final sales release version (68K renderer and 68K effect file).
SARE_PPC - Beta version of the Imagine Stand Alone Render Engine (PPC S.A.R.E. and PPC effect file)

Resolution:
Rendering resolution - 640x480 24Bit.

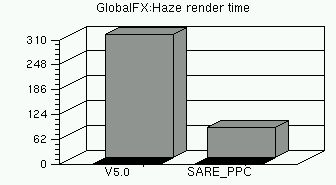

Test 1 - Global effect
chart_glfx_haze_pic

In the example "Test 2 - Sample project", a reasonably detailed object with surface material is set in a scene with a primitive disc object and one light. The global effect Haze is used to provide a glow/haze around the disc. Resolution 320x240

Test 2 - Sample project
Test2_pic

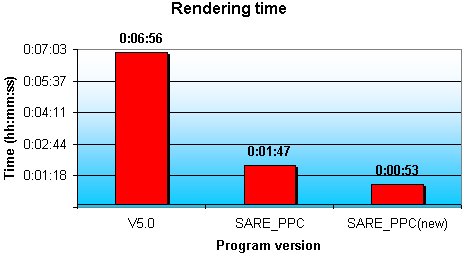

chart_glfx_haze2_pic

Download the "Test 2 - Sample project" here
